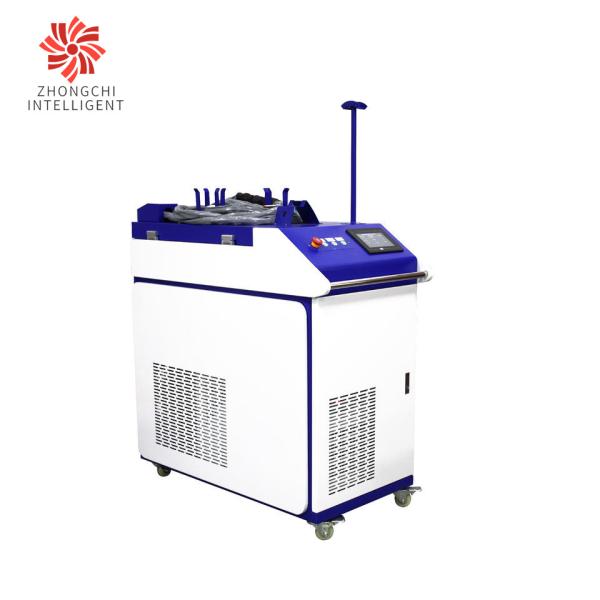

Handheld Laser Welding Machine Portable Handheld Laser Welding Machine For Metal Laser Soldering 1500W 2000W 3000W
Product Description
Zhongchi Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding. Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.
Features
Equipment characteristics (compare the advantages of argon arc welding and electric welding)
1. Simple operation, no need for professional personnel (low staff cost)
2. No welding scar, no deformation, weld level, reduce the later polishing process, save time and cost
Specifications
| Laser Model | LRL-HT1500W | LRL-HT2000W | LRL-3000W |
| Power | 1500W | 2000W | 3000W |
| Weld Requirements | <0.5mm |
| Fiber Length | 10/15m (Optional) |
| Speed | 0-120mm/s |
| Laser Wavelength | 1060nm±5nm |
| Working Environment Humidity | <70% |
| Material Protection Gas | Aluminum Plate(N2)-Stainless Steel(Ar/N2)-Carbon Steel(Co2-N2-Ar)-Galvanized Sheet(Ar) |
| Weld Thickness of different materials | Stainless Steel 0.5mm
Carbon Steel 0.5mm
Galvanized Sheet 0.5-0.8mm | Aluminum Plate 1.0-1.5mm
Stainless Steel 0.5-2.0mm
Carbon Steel
0.5-2.0mm
Galvanized Sheet 0.5-1.5mm | Aluminum Plate 1.0-2.0mm Stainless Steel 0.5-2.5mm Carbon Steel 0.5-2.5mm Galvanized Sheet 0.5-2.0mm |
Applications
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: If some problems happen to this machine, what should I do?
A: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: What's delivery time?
A: Commonly, the lead time is within 45 working days after receiving the payment.
